Night Vision PVS-14 Gen 3

Prime Armor
$3,795.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added

DESCRIPTION AND FEATURES

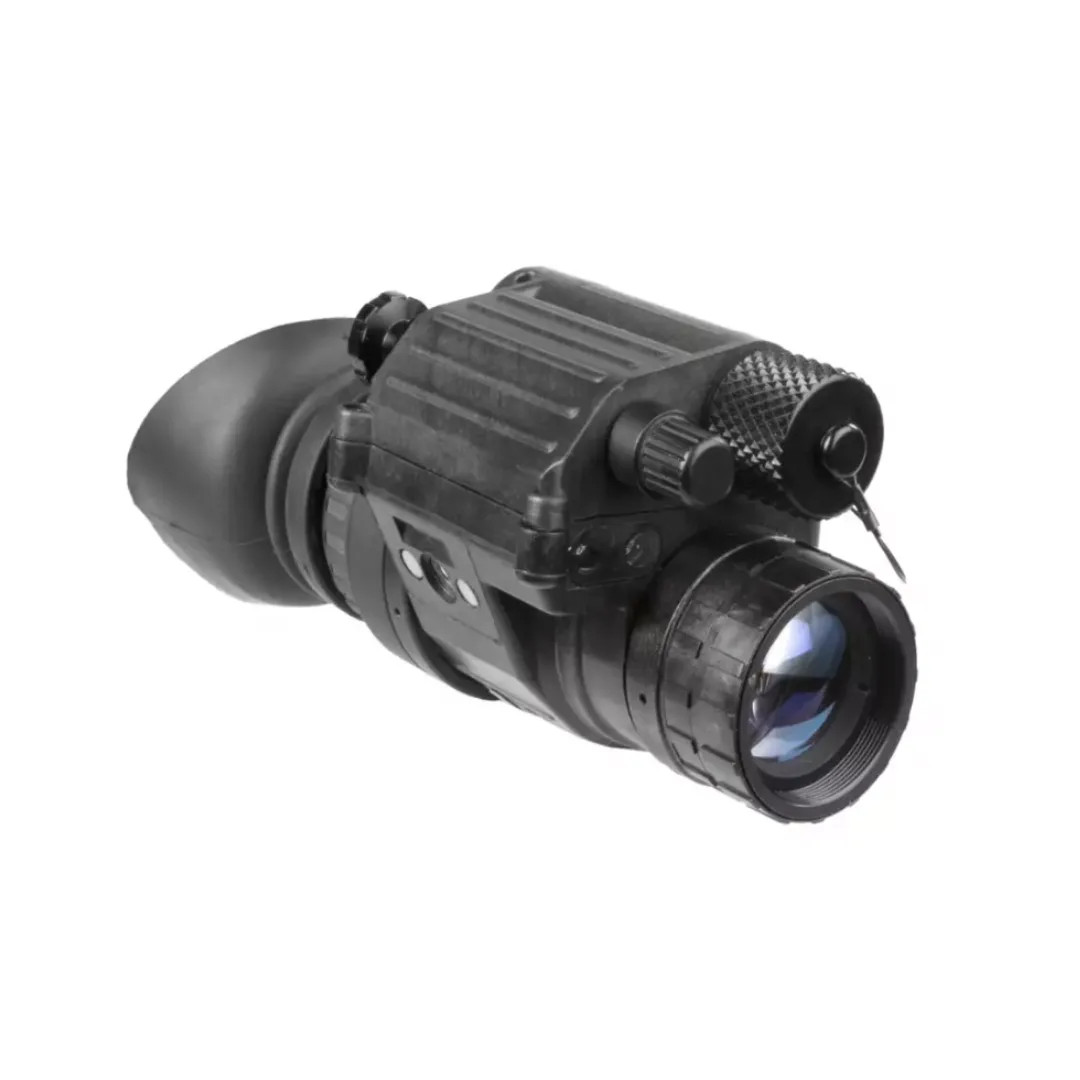

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. The PVS-14 design was originally commissioned by the United States Military to enable nighttime operations. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a handheld device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets, providing night vision capabilities to daytime optical sights. The PVS-14 monocular conforms to 810G Military standards and demonstrates the highest quality form and function. The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces / 350 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14 includes an array of optional accessories to support virtually any operation.

Warning: California’s Proposition 65

  • Compact, rugged design
  • Waterproof
  • Head or helmet-mountable for hands-free usage
  • Manual gain control
  • Ergonomic, simple, easy-to-operate controls
  • Built-in Infrared illuminator and flood lens
  • 3-Year warranty
  • Made in the USA

CHARACTERISTICS

Image Intensifier Tube: Gen 3 Auto-Gated “Level 2”

Magnification: 1x (3x and 5x optional)

Lens System: 27 mm; F/1.2

FOV: 40°


PACKAGE INCLUDES
  • Packing Box
  • System Soft Carrying Case
  • Helmet/ Head Mount Adapter
  • Head Mount Assembly
  • Neck Lanyard
  • Operators Manual
  • Batteries
  • Demist Shields
  • Sacrificial Window
  • Lens Tissue



SPECIFICATIONS

Image Intensifier Tube: Gen 3 Auto-Gated “Level 2”
Resolution: 64-72 lp/mm
Field of view cleanness by zone Gen 3 IIT 3AL2 is the second best quality offered by AGM with very limited number of spots in Zone 1.
Magnification: 1x (3x and 5x optional)
Lens System: 27 mm; F/1.2
FOV: 40°
Focus Range: 0.25 m to infinity
Diopter Adjustment: -6 to +2 dpt
Led Indicators: Low battery; IR On; Excessive light conditions
Infrared Illuminator: Yes
Manual Gain Control: Yes
Bright Light Cut-Off: Yes
Automatic Shut-Off System: Yes
Battery Type: One AA Alkaline
Battery Life (Operating): Up to 40 hours at 20°C
Operating Temperature Range: -51° C to +49° C (-60° F to 120° F)
Storage Temperature Range: -51° C to +85° C (-60° F to 185° F)
Weight: 0.35 kg (12.4 oz)
Overall Dimensions: 114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)
Package Includes: Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery.



DOWNLOADS:
EXPORT RESTRICTIONS:

This is an ITAR controlled item. Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
